The Power of Tilt-Up Construction: A Faster, Cost-Efficient Building Method

The construction industry is constantly evolving, with new techniques emerging. One such method that has gained significant traction is tilt-up construction. According to the Tilt-Up Concrete Association (TCA), over 10,000 tilt-up construction projects are erected yearly across the United States and the industry is growing at an annual rate of 20%. Used in warehouses, offices, and retail spaces, tilt-up is reshaping the way modern structures are built. But how does it compare to traditional methods like precast concrete and steel buildings?

In this article, we’ll understand the history behind the tilt-up construction, its step-by-step process, pros, and cons. We’ll also explore the latest innovations driving its future in industrial and commercial real estate.

What is Tilt-Up Construction?

The American Concrete Institute (ACI) defines tilt-up construction in ACI 551.1R-18 (“Tilt-Up Concrete Construction”) as:

“A construction technique of casting concrete elements in a horizontal position at the job site and then tilting and lifting the panels to their final position in a structure.” ​

Tilt-up is a construction method where concrete wall panels are poured flat on the ground at the building site and then lifted into place with a crane to form the structure’s exterior walls. It’s a fast, efficient, and cost-effective way to build durable buildings, commonly used for warehouses, retail outlets, and other commercial spaces.

History and Evolution of Tilt-Up Construction

Tilt-up construction, though often seen as a modern innovation, has deep historical roots. Its earliest form traces back to 18th-century North America with communal barn raisings, where timber walls were assembled flat and lifted into place—laying the groundwork for today’s tilt-up principles. This foundational technique later inspired innovators like Thomas Edison, who in the early 1900s experimented with concrete tilt-up homes as a faster, affordable alternative to using two wooden walls for construction.

During World War II, the U.S. military leveraged tilt-up methods, especially for barracks due to the urgent need for rapid, cost-effective building. The technique gained momentum post-war, as advancements like mobile cranes and ready-mix concrete further catalyzed widespread adoption.

The term “tilt-up” was coined in the 1940s. Southern California played a pivotal role in its modern development, especially in the 1950s, where it gained traction as a cost-effective solution for warehouse construction.

By the late 20th century, tilt-up’s reach had expanded to schools, offices, churches, and hospitals. Today, it’s a global, multi-billion dollar industry, used in over 650 million square feet of new construction annually. With panels now reaching up to 100 feet in height, tilt-up continues to evolve and is valued across diverse building types and scales.

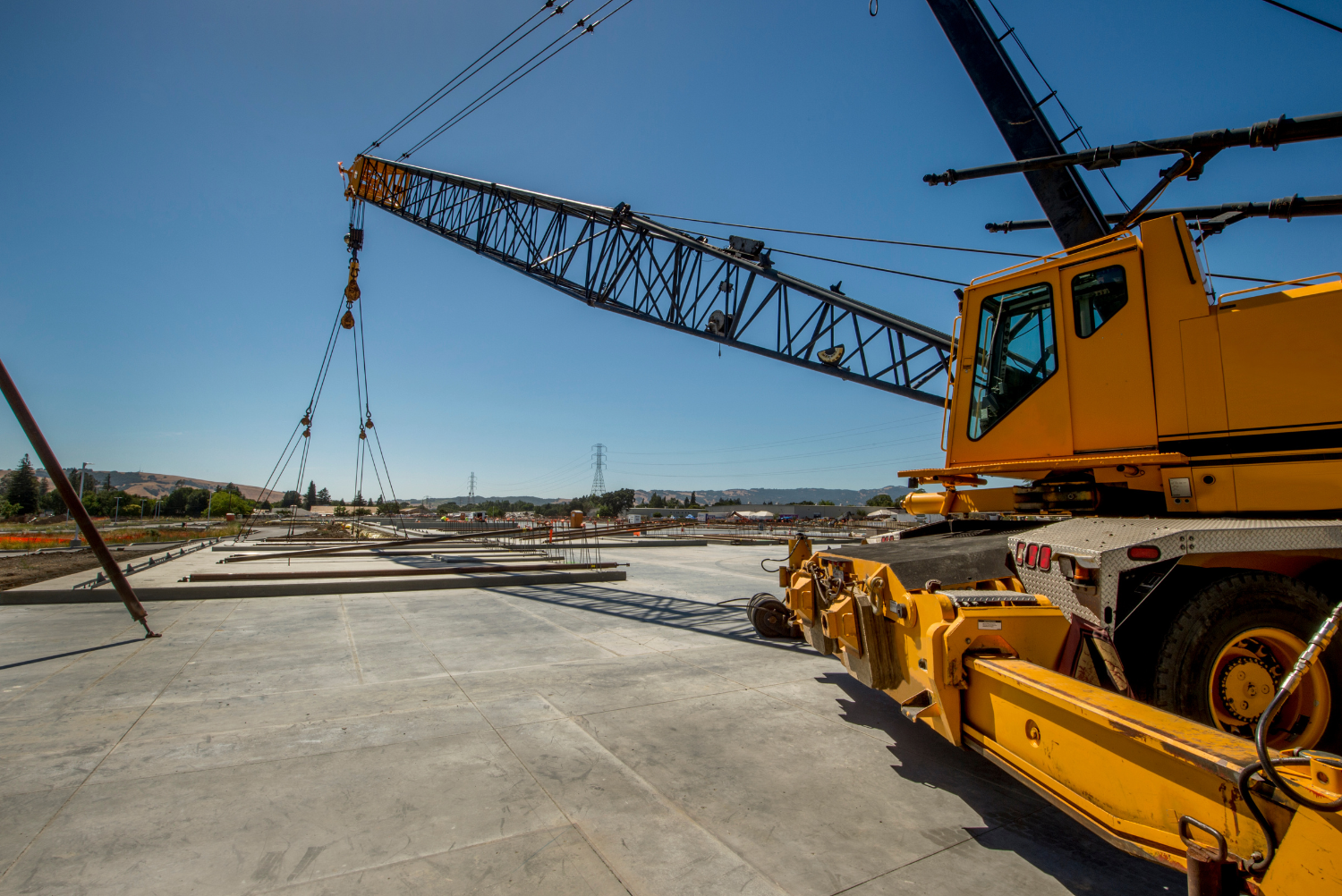

How the Tilt-Up Construction Works: A Step-by-Step Process

Tilt-up construction involves a highly organized and streamlined sequence of steps performed directly at the job site. Unlike precast concrete, which is produced in a factory and shipped to the location, tilt-up is poured and assembled on the project’s actual foundation slab. Here’s the tilt-up construction process explained:

1. Design and Planning

Every successful tilt-up construction project begins with detailed planning. Architects, engineers, and contractors work closely to determine the size, shape, weight, and layout of each panel, along with the casting sequence, lifting logistics, and crane access. A detailed panel layout is prepared, showing embed locations, reinforcement specs, and lifting inserts. Safety, weather, and soil stability assessments are also completed during this preconstruction stage.

2. Site Preparation and Foundation Pouring

The site is cleared, leveled, and graded for slab pouring. Next, the team pours a large, flat concrete slab to begin the construction process. This slab serves as both the building floor and the casting surface for the wall panels. Footings and edge forms are installed to define panel positions. The slab must be exceptionally flat and clean, as imperfections could transfer to the finished panels.

3. Panel Formwork Assembly

Once the slab cures, panel forms are constructed directly on it using dimensional lumber or metal. These forms are customized for each wall’s design, integrating door and window openings, architectural details, and any embeds for utilities or structural attachments that will help connect the panels later. A bondbreaker—a chemically reactive agent—is applied to the slab to ensure the panel cleanly detaches during curing.

4. Reinforcement Placement

Inside the forms, steel reinforcement (rebar) and embed plates are installed and elevated using plastic chairs for proper concrete coverage. Inserting a steel rebar grid ensures structural strength and helps connections between panels and other structural elements.

5. Concrete Pouring and Curing

Next, concrete is poured into the forms and left to cure. Some panels include insulation layers sandwiched between concrete for energy efficiency. Vibration tools are used to eliminate air pockets, ensuring a dense, uniform structure. Depending on weather conditions, curing can take from overnight to several days to achieve the required strength. Bond breakers may be used to prevent adhesion between the slab and the panel.

6. Lifting the Panels

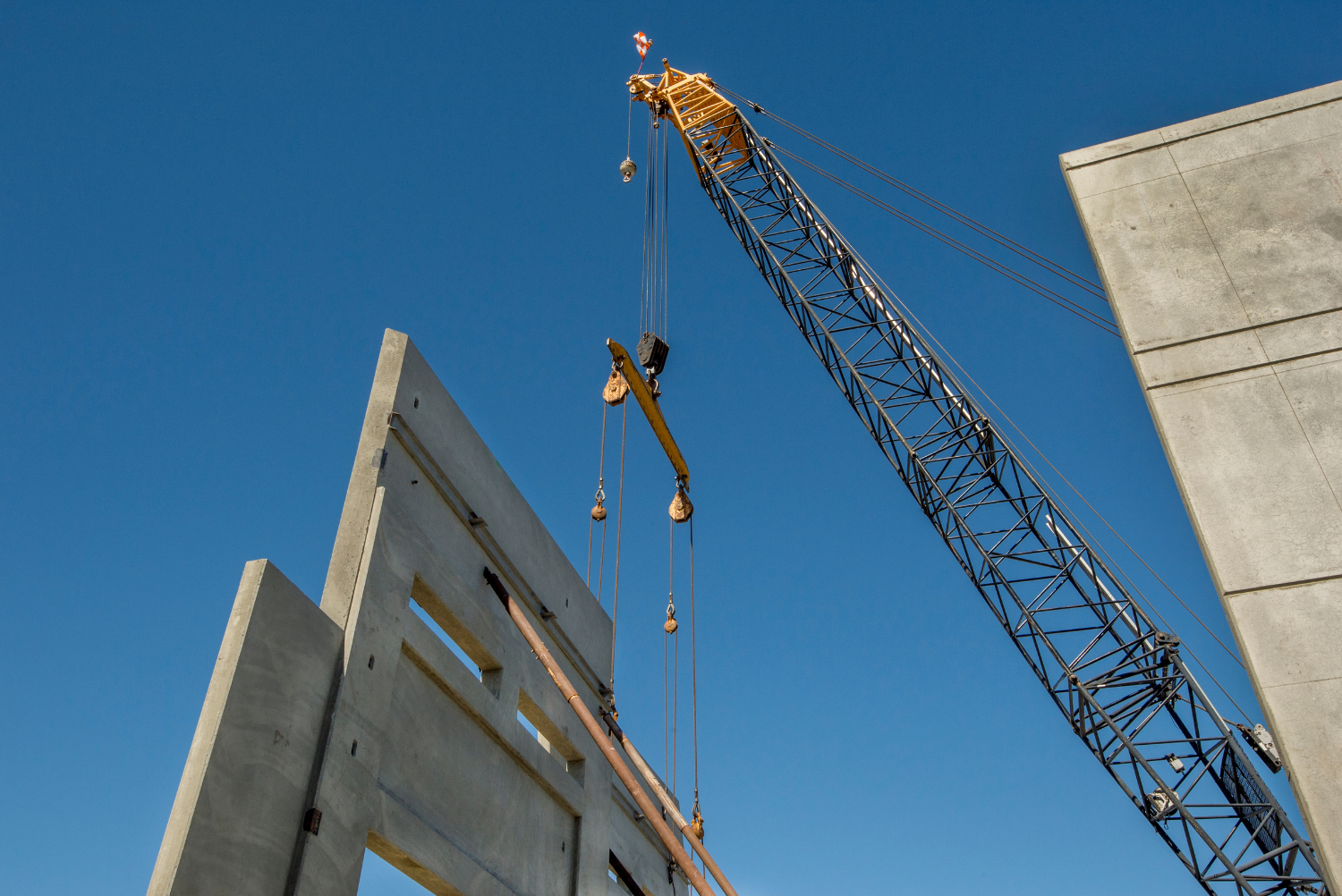

This is the signature step of tilt-up construction. Once cured, cranes lift each panel from the horizontal slab into their vertical position — hence the name “tilt-up.” The panels are set into place on the footings and temporarily braced until the structure is complete. Dozens of tilt-up concrete panels are lifted everyday, each often weighing over 80,000 pounds, making it a highly coordinated process.

7. Panel Finishing

After erection, panels are secured with joints and finished with paint, textured coatings, or architectural treatments. Installation of roof system and interior work such as plumbing, electrical, and insulation for weather resistance proceed in parallel, accelerating overall timelines.

Hence, the process of tilt-up construction offers both factory-quality control with the flexibility of on-site assembly.

Advantages of Tilt-Up Construction

Nationwide, the TCA estimates that the tilt-wall method is used in constructing 15% of all industrial facilities. In Texas, nearly 75% of new single-story commercial buildings rely on tilt-up construction. Here’s what makes tilt-up popular among building contractors and owners:

• Faster Project Timelines

Since wall panels are casted on-site and erected within days, it significantly reduces transportation logistics and construction timelines. This allows for interior trades to work sooner and quicker building occupancy—ideal for tight schedules and seasonal considerations. Experts say tilt-up construction can decrease project timelines by 30% to 50%, especially for large projects.

• Cost Efficiency at Scale

As square footage of a tilt-up project increases, so do savings. Fewer laborers are required compared to masonry or steel, and materials like concrete and rebar are sourced locally, reducing both transport costs and delays.

• Durability & Longevity


Tilt-up concrete panels withstand harsh environmental conditions, including storms, fire, and even seismic events when properly engineered. Many tilt-up structures from the mid-20th century remain in use with minimal maintenance.

• Design Flexibility


Contrary to misconceptions, tilt-up isn’t just for “big boxes.” Panels can support diverse architectural styles and be textured, curved, or colored, with embedded materials, offering both form and function.

• Energy Efficiency


The thermal mass of concrete moderates indoor temperatures, reducing reliance on HVAC systems. This leads to lower operating costs over time and supports sustainable building certifications like LEED and other green building standards.

• Greater Security and Acoustic Control


The dense concrete panels provide a natural barrier to noise and intrusion, making them ideal for data centers, clean rooms, warehouses, and secure facilities.

• Enhanced Safety & Insurance Benefits


Most construction is done at ground level before lifting the panels, lowering fall risks and improving worker safety. Moreover, fire-resistant concrete walls and structural strength often qualify buildings for lower insurance premiums.

• Adaptability for Future Expansion


Tilt-up concrete panels can be engineered as removable or modifiable, allowing for seamless additions without major reconstructions.

Disadvantages of Tilt-Up Construction

While Tilt-Up is a powerful construction method, it’s not the right option for every project. Commercial contractors should assess the following factors during the planning stage:

• Weather-Dependable Construction


Since concrete must cure in-place, rain, snow, and extreme temperatures can delay schedules or compromise panel quality. This makes tilt-up less viable during winter or in humid climates without protective measures.

• Space Requirements for Panel Lifting


Erecting panels via crane demands ample on-site clearance, which may not be possible in dense urban settings or small lots. This may increase the logistical complexity of the project.

• Seismic Vulnerability (If Unretrofitted)


Older tilt-up buildings, especially those lacking proper roof-to-wall anchoring, may underperform in earthquake-prone areas without structural upgrades. Seismic retrofitting of older structures may be costly but required to prevent collapse risks.

• Design Constraints for Small or Complex Structures


While tilt-up allows for customization, highly intricate architectural forms or tight footprints may be better suited to steel or traditional methods, which offer more immediate design flexibility.

• Higher Initial Equipment Costs


Cranes, bracing systems, and specialized rigging are essential for the tilt-up construction process. Although labor costs tend to be lower, the high cost of equipment can offset potential savings for smaller building projects. Furthermore, equipment availability must be considered when planning project timelines.

• Crane and Slab Overloading


Floor slabs may not be designed to handle the repeated passes of heavy cranes erecting panels. Without proper planning, structural damage during panel lifting is a real risk, especially for commercial or retail spaces with lighter floor specifications.

• Repairs Can Be Challenging


Though durable, if a concrete panel is damaged or needs alteration, repairs can be difficult and often require careful engineering owing to the size and load-bearing capacity of each unit.

• Need for Specialized Expertise


The success of tilt-up construction depends heavily on precision during panel casting, curing, and lifting. An inexperienced team may mishandle connections or lifting, posing serious risks to structural integrity and worker safety.

Tilt-Up vs Precast Concrete: What’s the Difference?

While both tilt-up and precast use concrete panels, however, the approach to fabrication, transportation, and installation differ significantly:

Manufacturing Location and Quality Control

Precast panels are manufactured off-site in controlled factory environments. Elements like finishes, insulation, and embedded materials can be integrated during the casting phase with minimal environmental interference.

On the other hand, tilt-up concrete panels are cast on-site, directly on the building’s floor slab, then lifted into place with a crane. Precast concrete offers more consistent quality due to controlled factory production and testing, while tilt-up construction is more weather-dependent but helps avoid long-distance transport.

Installation Time and Logistics

Precast elements arrive ready to install, speeding up vertical construction timelines and reducing on-site disruption. However, transporting them can be challenging, particularly in tight urban areas or remote locations.

Tilt-up construction eliminates transport issues and allows parallel workstreams such as roofing or other foundational work to continue while panels cure. Though generally quicker than traditional cast-in-place methods, tilt-up still requires time to form and cure panels on-site, which may be impacted by poor weather or site constraints.

Load Capacity

Concrete tilt-up panels offer flexibility in real-time modifications, making them suitable for evolving job site conditions. However, precast panels support higher compressive strength, often rated over 5,000 psi compared to 4,000 psi for tilt-up, providing greater long-term durability. Moreover, precast concrete can use CarbonCast or C-GRID panels, which has 4 times higher tensile strength than steel reinforcing.

Thermal Performance

Both precast and tilt-up methods can incorporate insulation to improve energy efficiency. Precast panels typically include continuous insulation and integrated finishes during fabrication, offering strong thermal performance from the start. Reportedly, precast concrete can help save up to 25% on heating and cooling costs. Tilt-up can achieve similar energy efficiency but often requires more on-site labor and finishing.

Design Flexibility

While both systems allow for custom architectural features, precast has a slight edge in achieving fine detail and high-end surface finishes — such as stone veneers, granite, or terra cotta. However, tilt-up offers texture customization on-site with finishes such as form liners, stains, and embedded materials.

Panel Size

Tilt-up concrete construction allows for much larger panels—sometimes over 50 feet tall as they’re cast and lifted on-site, avoiding transport size limits. This reduces joints, speeds up installation, and offers greater design freedom. Precast panels are smaller and require more crane lifts and connection points.

Cost Efficiency

Tilt-up is often more cost-effective for large, single-story structures like warehouses or retail stores, especially where local labor and materials are readily available. Precast construction may be more cost-efficient for complex or multi-story buildings, or in locations with space limitations or unfavourable weather.

Geographical Suitability

Tilt-up construction is climate-sensitive and less feasible in cold or humid regions due to curing limitations. Precast concrete, unaffected by on-site weather, is preferred in areas like the Midwest for year-round viability and tighter schedules.

Final Verdict: Tilt-up is the better choice for cost-effective, flexible on-site construction, while precast is ideal for high-quality, durable, and time-sensitive projects where precision and speed are a focus.

Feature	Tilt-Up Construction	Precast Concrete
Casting Location	On-site	Off-site (factory)
Weather Dependency	High	Low (controlled environment)
Panel Size Limit	Large panels possible	Limited by transport logistics
Timeline	Fast with ideal weather	Faster overall due to pre-curing
Design Flexibility	High on large sites	High in detailing and finishes
Quality Control	Moderate (site variability)	High (factory standards)
Transportation	Not needed	Essential, with size limits

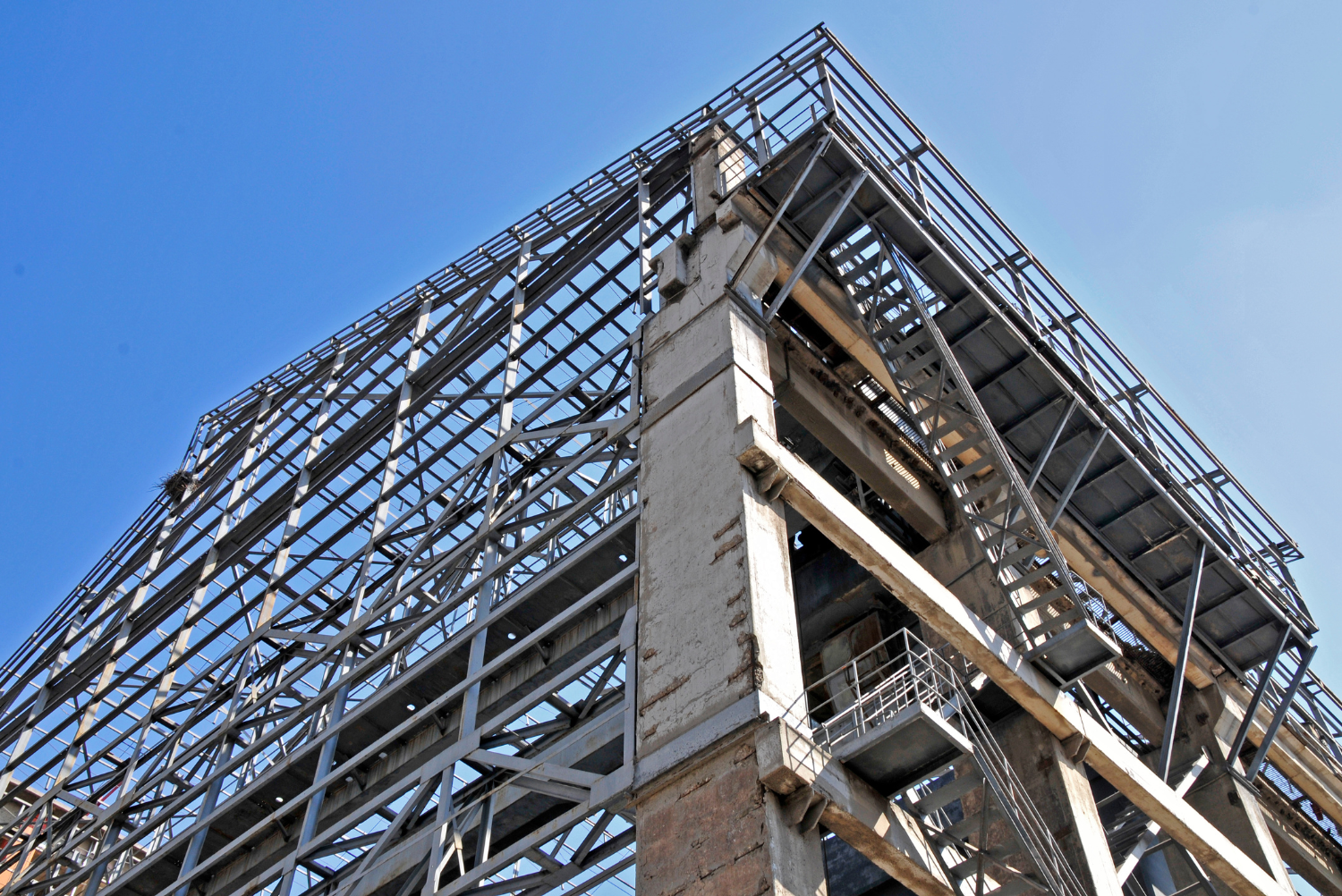

Tilt-Up vs Pre-Engineered Steel Buildings (PEMBs): Which is Better?

Pre-engineered metal buildings (PEMBs) are a popular option for large buildings, especially industrial facilities and warehouses. But how do they stack up against tilt-up construction? Let’s find out:

Construction Speed and Efficiency

Both tilt-up and pre-engineered steel buildings (PEMBs) are known for swift construction, but steel has an edge in setup speed. PEMBs arrive prefabricated and need only assembly, while concrete tilt-up panels require time for on-site casting and curing, increasing vulnerability to weather delays.

Structural Adaptability

Steel construction allows for longer spans, larger open interiors, and easier future remodels. In contrast, tilt-up structures typically involve thicker concrete walls and additional support columns, limiting flexibility for remodels or complex floor plans.

Architectural Flexibility

While PEMBs are largely limited to utilitarian forms, tilt-up supports architectural flexibility like curved walls, varied textures, recesses, and even branding elements like logos cast into the panels. For projects where image and customer experience matter such as office parks, schools, or retail buildings, tilt-up concrete construction provides an aesthetic advantage.

Material Costs

PEMBs are often more cost-effective for buildings under 50,000 sq. ft., with steel frames costing $10–$20 per square foot compared to $25–$40 for tilt-up. However, for larger-scale projects, tilt-up becomes more competitive due to concrete’s lower material costs offsetting higher fixed setup expenses.

Durability and Disaster Resilience

Pre-engineered steel buildings shine in seismic zones due to their ductility and tensile strength. They can flex without breaking under high pressure, unlike tilt-up concrete which, although robust, may fail catastrophically under extreme wind or impact loads.

Still, tilt-up outperforms steel in resistance to corrosion, pests, moisture, and fire, whereas steel buildings are more vulnerable to rust, especially in humid or coastal climates. This can significantly reduce long-term maintenance costs.

Thermal and Acoustic Performance

Concrete’s natural thermal mass offers better energy efficiency and noise insulation. PEMBs often require additional layers of insulated metal panels or sound barriers as metal conducts heat and sound more readily. This can increase overall project costs and complexity. For facilities requiring climate control or quiet environments, tilt-up is a superior option.

Insurance Rates

Concrete tilt-up buildings often have lower premiums due to fire and moisture resistance, while PEMBs often face higher insurance costs, especially in fire-prone or humid regions.

Final Verdict: Choose PEMBs for rapid assembly, cost-efficiency, and structural adaptability—ideal for warehouses, distribution centres, and simple commercial builds. Opt for tilt-up concrete for permanent building projects needing better insulation and long-term durability in mild or humid climates.

Feature	Tilt-Up Construction	Pre-Engineered Metal Buildings (PEMBs)
Speed	Slower; weather delays possible	Faster; prefabricated components
Flexibility	Limited structural changes	Easy to remodel; large open spans
Aesthetics	Custom textures, curves, branding is possible	Basic, utilitarian look
Cost	Higher upfront; better for large projects	Lower cost for smaller buildings
Durability	Resists fire, moisture, pests, corrosion	Rust-prone; strong in earthquakes
Efficiency	Better insulation and sound control	Needs added insulation
Insurance	Lower premiums	Higher in risky climates

Future Trends in Tilt-Up Construction

Tilt-up construction is rapidly evolving to meet demands for speed, sustainability, and design flexibility. Here are the emerging trends shaping its future.

1. Prefabricated Hybrid Panels: These combine concrete with materials like steel or timber to enhance structural flexibility and reduce construction time. This innovation supports broader applications beyond traditional warehouses or big-box stores.
2. Advanced Concrete Technologies: High-performance mixes like ultra-thin CarbonCast panels which use a carbon fiber grid (C-GRID) instead of traditional steel rebar offer greater strength, lighter weight, and corrosion resistance, all while minimizing material use. Also, using cementitious materials (SCMs) like fly ash and slag combined with insulation systems, is making tilt-up construction more sustainable and energy efficient.
3. Vertical Expansion: Generally used for 2 to 4-story buildings, new structural systems are pushing the limits of tilt-up beyond low-rise buildings. Mid-rise construction is becoming feasible, opening tilt-up to markets like multifamily housing and urban commercial spaces. The tallest tilt-up concrete panel on record, measuring 111 feet 9 inches, was erected in 2017 for a nine-story, 600-bed dormitory at Florida International University’s Biscayne Bay Campus in North Miami, Florida.
4. Custom Architecture: There has been a growing use of advanced coatings and finishes that mimic wood, stone, or metal at lower costs. Along with that, use of embedded materials like granite or terra cotta, color pigments, and curved or recessed panels is making tilt-up more aesthetically versatile than ever.
5. Smart Panels: Integration of IoT-enabled sensors allows for real-time monitoring of structural health, temperature, and energy efficiency, making buildings smarter and more responsive over time.

These innovations, paired with digital tools like Building Information Modeling (BIM) and sustainable practices, make tilt-up construction a modern solution for building challenges.

Key Considerations Before Starting a Tilt-Up Construction Project

Effective implementation of tilt-up depends on a range of factors including site conditions, structural requirements, budget management, and project scale. Understanding these key considerations can make the job easier for contractors and owners:

• Space Requirements

Tilt-up construction requires ample space for panel casting and crane movement. Projects on tight, irregular, or urban lots may lack the necessary lay-down area, making precast or modular solutions more suitable.

• Early Planning and Coordination

Early collaboration among structural engineers, contractors, and crane operators is essential. Proper sequencing of panel lifts, bracing, and strategies to prevent slab damage must be established from the outset to avoid costly delays or damage.

• Cost Considerations

While tilt-up can offer significant cost savings for larger or repetitive structures, smaller or highly complex projects may not justify the upfront investment. Costs related to crane rental, specialized labor, and on-site setup can escalate if not carefully managed.

• Management of Floor Slab Loads

Since tilt-up concrete panels are often cast directly on the slab, managing crane loads is critical. In buildings with thinner slabs, such as office buildings or retail spaces, temporary matting or alternate lifting techniques may be required to prevent cracking.

• Labor and Equipment Needs

Although tilt-up can offer labor savings overall, it still requires skilled crews for formwork, rebar placement, concrete pouring, and crane operation. Errors in bracing or alignment can lead to structural failures, emphasizing the need for experienced personnel and industry certifications (e.g., TCA, ACI).

• Weather and Environmental Factors

Extreme weather can affect tilt-wall construction schedules and concrete quality. Hence, cold, hot, or wet climate may require additional measures like concrete additives, thermal blankets, or temporary shelters, which can add to overall project cost.

• Seismic Design Considerations

In seismic regions, panels must be engineered for lateral forces and joint movement. This requires advanced joint detailing and anchoring systems, which can make tilt-up a feasible option even in high-seismic zones like California.

Conclusion

Tilt-up is revolutionizing the construction industry, offering a smart blend of speed, strength, and cost savings. It’s a method that has stood the test of time, evolving with new construction materials and technologies to meet future needs. While it’s not the perfect fit for every project, it’s a go-to choice for many large-scale commercial buildings. However, the success of a tilt-up project depends on careful planning and skilled execution. That’s why working with an experienced commercial building contractor is important to ensure a smooth, efficient tilt-up build from start to finish.

Work with Us

Looking to explore tilt-up for your next commercial project? Partner with Constructive Solutions, Inc. as our experienced professionals understand the nuances of this building technique and can deliver a fast, efficient, and visually stunning result. Contact us today.

FAQs

What is the tilt construction method?

Tilt-up construction is a building technique where concrete panels are poured flat on-site and then lifted into place with a crane to form the structure’s walls.

How much does the tilt-up construction cost?

Tilt-up construction costs typically range between $25 to $40 per square foot, making it more cost-effective for larger buildings. Some projects may even cost from $156 to $234 per square foot, including expenses for materials, labor, and equipment. ​

Is tilt-up concrete precast?

No, tilt-up concrete is not precast because it is poured and cured on-site, whereas precast concrete is manufactured in a factory and transported to the site for installation.
